Character Templates
A Character Template is a blueprint for creating characters from a defined Character Type.
They provide an easy way to use characters anywhere in your project.
Shared Fields
Fields required by all Character Templates.
| Field | Type | Description |
|---|---|---|
| Character Type | UnifiedCharacterTypeSO / LayeredCharacterTypeSO |
Reference to the Character Type this template is based on. API |
| Character Name | String |
Name for characters created from this template (does not need to be unique). API |
| Character Display Name | String |
Optional display name shown for characters created from this template. API |

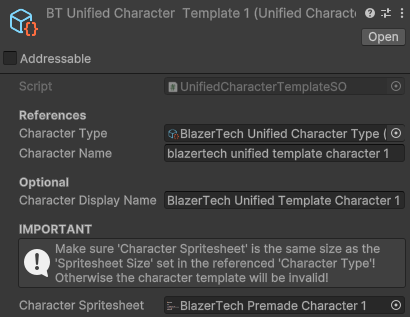

Unified Character Template
Setup
A blueprint used to create a Unified Character at runtime. Can be used in the Unified Character Loader component.
Tip
To create a Unified Character Template:
Right-click in the Project window → Create > BlazerTech > Character Management System > Character Templates > Unified Character Template
Fields
| Field | Type | Description |
|---|---|---|
| Character Spritesheet | AssetReferenceT<Texture2D> |
Reference to a spritesheet the same size as the Base Spritesheet in the Character Type. When referenced, the spritesheet is marked as Addressable, allowing it to be loaded/unloaded during runtime. API |

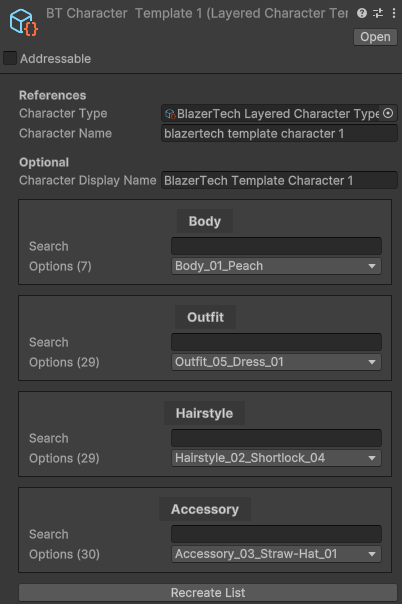

Layered Character Template
Setup
A blueprint used to create a Layered Character at runtime. Can be used in the Layered Character Template Loader component.
Tip
To create a Layered Character Template:
Right-click in the Project window → Create > BlazerTech Character Management System > Layered Character Type
Once the Character Type reference is set, a list of all layers from the referenced type will appear.
Each layer includes:
- Dropdown – Select which option to use for the layer.
- Search bar – Narrow results if the list is large.
Buttons
- Recreate List – Rebuilds the layers list and resets all values.
