History Panels

A History Panel displays a list of snaphots saved in the History Tracker component for the player to view and restore any changes they've made.

Tip

Prefabs Location: Prefabs > Character Creator > History > History Panels

Panel Type Prefabs

  1. History Panel [Text, Vertical List]
    • A vertical, text based list. Each entry displays text containing what changed in the assigned character snapshot.

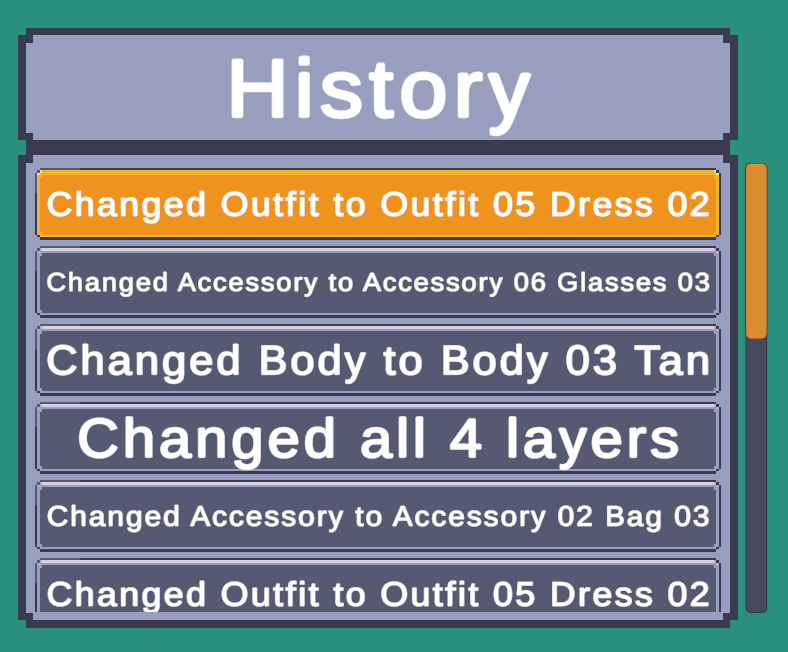

    • History Panel Text
  2. History Panel [Sprite, Horizontal List]
    • A horizontal, sprite based list. Each entry contains a list of sprites, each sprite displays a layer in the assigned character snapshot.
    • History Panel Sprite Preview

Entry Prefabs

The following are entries used in the above mentioned panels.

  1. History Panel Entry [Text]
    • Entry displaying text which describes what changed in the assigned snapshot.
  2. History Panel Entry [Sprite]
    • Entry containing a dynmaic list of sprites. Each sprite displays a layer in the assigned character snapshot.
Tip

Entry prefabs live in the /History List Entries subfolder.

Custom Prefabs

You can create your own history panel entry easily. Here are the steps

  1. Create a new game object and add the HistoryPanelEntry component.
  2. Set the display mode:
    • Text - Requires reference to a text objcet.
    • Sprite - Requires reference to layer preview sprites parent. (The parent game object sprites will be instantiated to)
    • Text And Sprite - Requires both aforementioned references.
  3. Add the Toggle component and reference it in the HistoryPanelEntry component.
  4. Add an Image component - This will be the background image.
  5. Set the Target Graphic on the toggle to the image component.
  6. Add a new child game object and add another Image component to it.
  7. Name the new child game object something like Highlight. - This game object will only be active when the entry is selected.
  8. Set the Graphic on the toggle to the image component on the Highlight game object.
  9. Turn your game object into a prefab by dragging it into a folder in the project window.
  10. Finally, on the CCMHistoryPanel component which lives on all History Panels, set the Entry Prefab to reference your new prefab.

Confused?
Checkout one of the pre-existing entry prefabs to see how they're setup.
